Inserções de moagem de carburo superior para processamento de superfícies curvas e sulcos de arco de alta velocidade

10pcs
MOQ
negociável
preço
Inserções de moagem de carburo superior para processamento de superfícies curvas e sulcos de arco de alta velocidade
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Marca: Drow
Model Number: Ball Milling Insert P3200
Customized Support: OEM,ODM
Standard: ISO
Product type: Carbide Milling Insert
Material: 100% Virgin Tungsten Carbide
Grade: K10-K20,P10-P20, M10-M30
Coating: To be defined per your different demands and application
Hardness: HRA 91.3~92.3
Precisão: ± 0,005 mm
Dimensions: Refer to below product specification

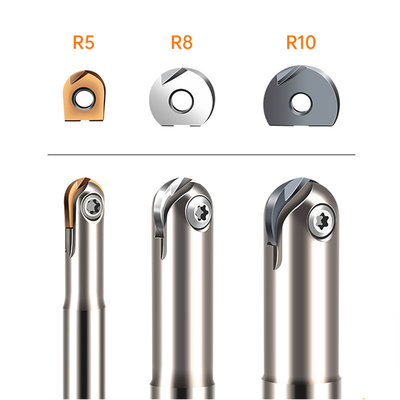

Holder: Milling Cutter Bar
Usage: Mainly used for R angle processing and curved surface machining
Machining type: Roughing / Semi-Finishing/Finishing
Sample order: Accepted
Materiais aplicáveis (insertos não revestidos): Metals.non-metallic de alumínio, de cobre, não-ferroso
Applicable materials(Coated inserts): Carbon steel,alloy steel,mold steel,other steel,ductile iron
Destacar:

Arcos de moagem de carboidratos

,

Superfícies curvas inserções de moagem de carburo

,

Inserções de fresagem de alta velocidade

Informação básica
Lugar de origem: Dongguan, China
Marca: Drow
Certificação: ISO9001
Número do modelo: Inserto de moagem a esferas P3200
Condições de Pagamento e Envio
Detalhes da embalagem: 10 PCes em uma caixa, 100 caixas em uma caixa
Tempo de entrega: Depende da quantidade. geralmente 1 ~ 3 dias úteis se em estoque; Mais de 5000pcs precisa ser negoci
Termos de pagamento: T/T etc.
Habilidade da fonte: 100*1000 PCes/mês
Descrição de produto

Superior Carbide Milling Inserts for Processing Curved Surfaces and Arc Grooves High-Speed Performance

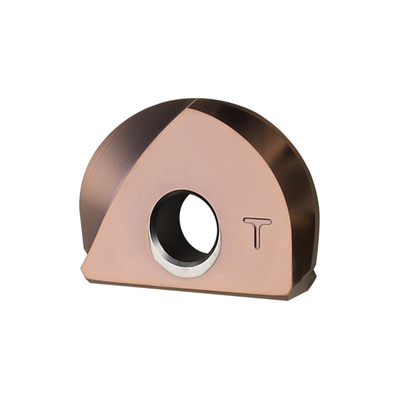

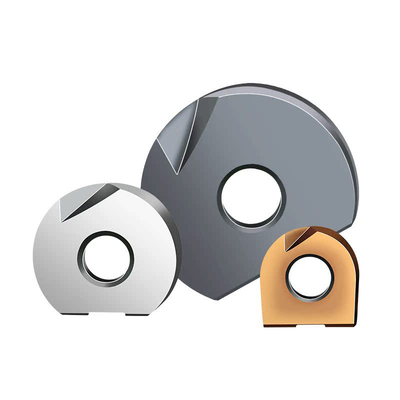

The P3200 is a specialized carbide ball milling insert designed for use in CNC milling machines. These inserts are particularly effective for processing curved surfaces and arc grooves, making them ideal for semi-finish milling at high speeds across a variety of materials, especially stainless steels and high-temperature alloys.

Product Details — P3200

Material Quality

  • Composition: Made from 100% original carbide powder, including grades K10-K20, P10-P20, and M10-M30, ensuring excellent wear resistance and toughness.

Usage

  • Primarily used for R angle processing and machining of curved surfaces.

Dimensions

  • Diameter (D): 8 to 25 mm
  • Radius (R): 4 to 12.5 mm
  • Height (h): 9.5 to 21.15 mm
  • For specific dimensions, please refer to the product specifications below.

Coating

  • Advanced Coating: Coating options will be defined based on your application needs, utilizing cutting-edge technology for enhanced corrosion and wear resistance.

Fine Grinding Process

  • The insert surface features high smoothness and superior cutting edge quality, effectively reducing friction and tool wear.

Perfect Fit

  • Designed with precise and smooth edge strips to minimize micro-vibration during processing.

Applicable Materials

  • Uncoated Inserts: Suitable for aluminum, non-ferrous metals, and non-metallic materials.
  • Coated Inserts: Ideal for carbon steel, alloy steel, mold steel, hardened steel, and ductile iron.

Customization

  • If the standard stock does not meet your specifications, please provide CAD or 3D drawings for a tailored solution.

Production Quality

  • All inserts are produced using advanced EU processing equipment. For more information, refer to the “Entire Production Quick View” section below.

Product Features

  1. Suitable for processing steel, stainless steel, and aluminum.

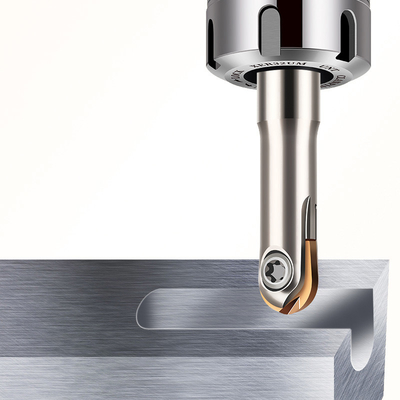

  2. Widely utilized for various curved surfaces and arc groove machining.
  3. Exceptional wear and breakage resistance.
  4. High precision and easy replacement ensure compatibility with tool holders, minimizing micro-vibration during processing.
  5. High-performance composite coating provides a super hard and smooth surface.

Product Specification

Part Number Dimensions (mm)
P3200 Refer to specifications

Note: For detailed dimensions, please consult the specifications. Custom sizes can be processed according to customer requirements.

Entire Production Quick View

  1. Utilize 100% original carbide powder to create integral insert blanks.
  2. Conduct flat grinding machining.
  3. Perform surrounding grinding machining.
  4. Create precise cutting edges.
  5. Execute chamfering and tip-arc processing of the cutting edge.
  6. Apply composite coating for enhanced performance.


Product Specification:

Inserções de moagem de carburo superior para processamento de superfícies curvas e sulcos de arco de alta velocidade 0

Part Number Dimension(mm)
D R h H
P3200-D08 8 4 9.5 2
P3200-D10 10 5 11.5 2.5
P3200-D12 12 6 11.5 2.5
P3200-D16 16 8 14 3
P3200-D20 20 10 16 3
P3200-D25 25 12.5 21.5 4
Attention:The above are our standard production size and standard stock specifications for this series, the size details can be processed separately according to customer requirements



Entire Production Quick View:

1.Use 100% original carbide powder to sinter to get the integral insert blank.

2.Flat grinding machining.

3.Surrounding grinding machining.

4.Create insert cutting edge.

5.Chamfering and tip-arc processing of the insert cutting edge.

6.Composite Coating.


Quality Inspection:

Inserções de moagem de carburo superior para processamento de superfícies curvas e sulcos de arco de alta velocidade 1


Why choose us:
1.Technical innovation: complex surfaces and functional structures can be quickly formed and kept accurate.
2.Processing speed: short production cycle, fast delivery time, to ensure delivery on time according to the delivery date.
3.Product quality: high quality guaranteed,high precision, up to 0.002-0.001mm.
4.Confidentiality system: triple confidentiality measures to protect, proofing more assured.
5.Fully equipped: excellent processing capacity, multiple production lines, advanced equipment, professional supporting facilities.
6.Cost-effective: reasonable design and material selection lead us to a competitive price, so that could help provide you more favorable price of the same level products .
